Products

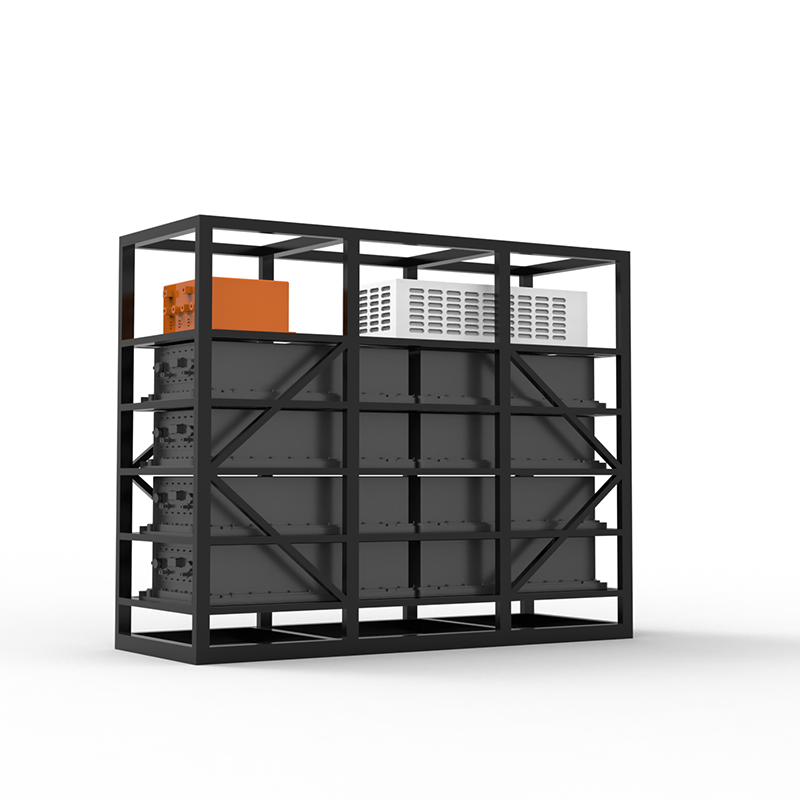

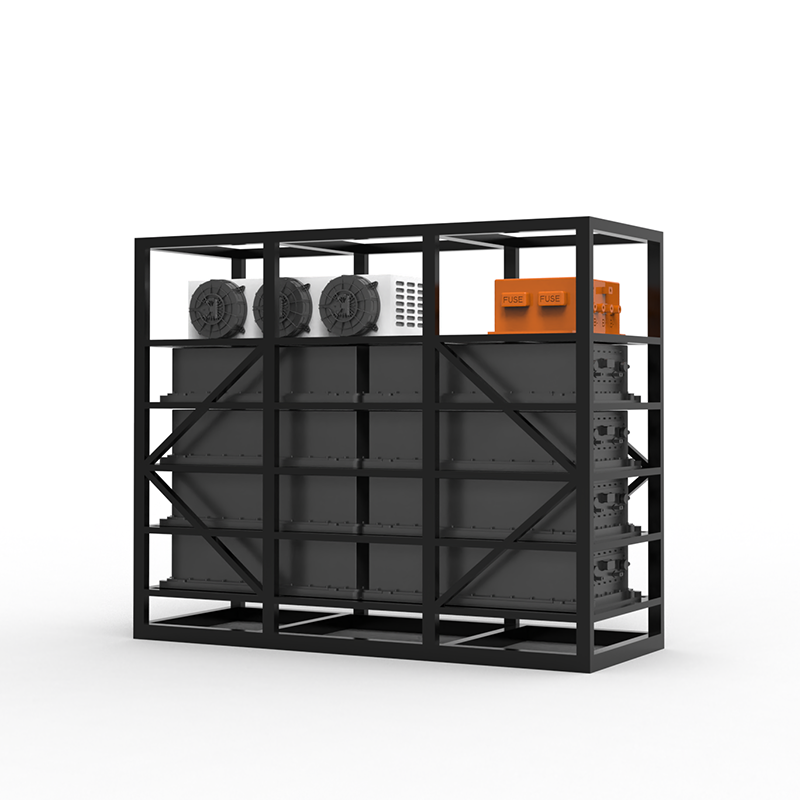

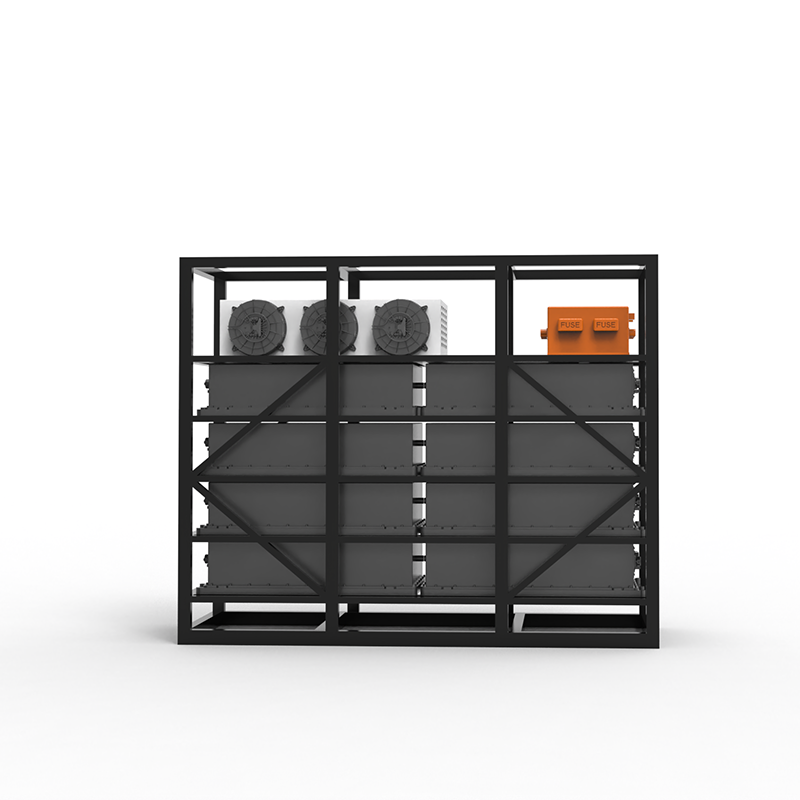

Efficient liquid cooling system
Large capacity reliable power battery cell
Enhanced durability and environmental resistance
Intelligent monitoring and security features
Model
YY423K
Nominal voltage
614.4V
Nominal capacity
690AH（230AH*3P）
Support in parallel
Max.16 clusters（230AH*16P）
Output port
Play and plug connector
Charger port
Dual gun DC fast charge
Size(mm)
2600*2200*1100MM
Weight
4500KG
Charging mode
DC charging pile-CC/CV
Charging current
345A(standard)
Max. Charge current(A)
Max.690A@25°
Charging cut-off voltage
691.2V
Discharge current
345A
Max. Discharge current(A)
Max.690A@25°
Discharge cut-off voltage
480V
Charging Temp Range(°C)
0~+55℃
Disharging Temp Range(°C)
-20~+65℃
Cooling method
Liquid cooling
